tanya cara membuat LSP / label mpls di linux ubuntu

Postby matabolabesar » 13 Jun 2012, 17:30

haloo smua.... saya yunus.. langsung saja,saya lg dalam penelitian skripsi dan menemukan kendala dalam membuat jaringan mpls,
saya menggunakan ubuntu 10.04 dan sudah selesai sampai tahap instalasi mpls. dan sekarang masalahnya pada setting lsp / label
berikut saya kirimkan topologinya..

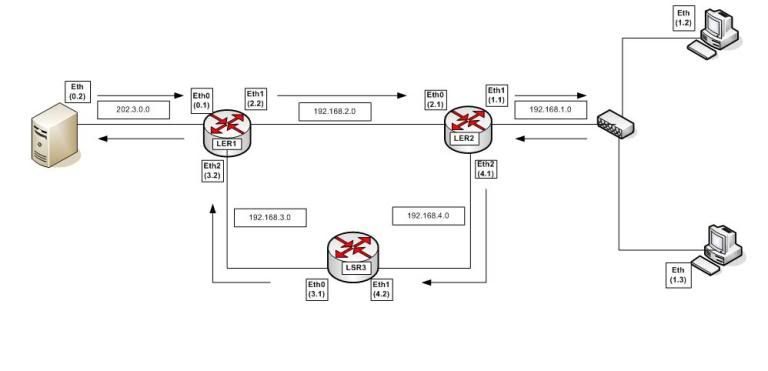

Topologi jaringan MPLS
Show ip route komputer1(LER1)
C>* 127.0.0.0/8 is directly connected, lo
K>* 169.254.0.0/16 is directly connected, eth0
K>* 192.168.1.0/24 via 192.168.2.1, eth1
C>* 192.168.2.0/24 is directly connected, eth1
C>* 192.168.3.0/24 is directly connected, eth2
K>* 192.168.4.0/24 via 192.168.3.1, eth2
C>* 202.3.0.0/24 is directly connected, eth0

Show ip route komputer2(LER2)
C>* 127.0.0.0/8 is directly connected, lo
K>* 169.254.0.0/16 is directly connected, eth2
C>* 192.168.1.0/24 is directly connected, eth2
C>* 192.168.2.0/24 is directly connected, eth0
C>* 192.168.4.0/24 is directly connected, eth2

Show ip route komputer3(LSR3)
K>* 0.0.0.0/0 via 192.168.4.1, eth1
C>* 127.0.0.0/8 is directly connected, lo
K>* 169.254.0.0/16 is directly connected, eth1
K>* 192.168.1.0/24 via 192.168.4.1, eth1
C>* 192.168.3.0/24 is directly conneted, eth0
C>* 192.168.4.0/24 is directly connected, eth1
K>* 202.3.0.0/24 via 192.168.3.2, eth0

LER 1
======
echo "1" > /proc/sys/net/ipv4/ip_forward
Modprobe mpls4
mpls nhlfe add key 0 instructions push gen 100 nexthop eth1 ipv4 192.168.2.
ip route add 192.168.1.0/24 via 192.168.2.1 mpls 0�2
mpls nhlfe add key 0 instructions nexthop eth0 ipv4 202.3.0.2
mpls labelspace set dev eth1 labelspace 0
mpls ilm add label gen 200 labelspace 0
mpls xc add ilm_label gen 200 ilm_labelspace 0 nhlfe_key 0�3

LSR 3
===
echo "1" > /proc/sys/net/ipv4/ip_forward
Modprobe mpls4
mpls labelspace set dev eth1 labelspace 0
mpls ilm add label gen 100 labelspace 0
mpls nhlfe add key 0 instructions push gen 300 nexthop eth2 ipv4 192.168.3.2
mpls xc add ilm_label gen 100 ilm_labelspace 0 nhlfe_key 0�2

LER 2
======
echo "1" > /proc/sys/net/ipv4/ip_forward
Modprobe mpls4
mpls labelspace set dev eth0 labelspace 0
mpls ilm add label gen 500 labelspace 0
mpls nhlfe add key 0 instructions nexthop eth1 ipv4 192.168.1.0
mpls xc add ilm_label gen 500 ilm_labelspace 0 nhlfe_key 0�2
mpls nhlfe add key 0 instructions push gen 600 nexthop eth2 ipv4 192.168.4.2
ip route add 202.3.0.2/24 via 192.168.4.2 mpls 0�3

scripts saya tulis dalam /etc/rc.lokal
masalahnya pada pembuatan LSP dan labelnya, beserta perintahnya.. apa ada yang pernah mencoba atau dapat memberikan saran,masukan... karena smuanya sangat berarti bgt bagi saya....

youfinz_bali3@yahoo.com
User avatar
matabolabesar
Posts: 3
Joined: 14 May 2012, 22:48
Location: kuta bali
Contact:

Re: tanya cara membuat LSP / label mpls di linux ubuntu

Postby matabolabesar » 06 Jul 2012, 19:26

tolong bantuannya para master.........
User avatar
Nexus
Posts: 2957
Joined: 26 Feb 2011, 12:39
Location: Ujung dunia

Re: tanya cara membuat LSP / label mpls di linux ubuntu

Postby Nexus » 06 Jul 2012, 19:48

bikin aja "startup application" buat firefox.
